Multi Screen®
MS 16 Pro
up to 30 m³/h screening performance
The machine can be operated
electrical. Optionally with a petrol
or diesel generator.
electrical. Optionally with a petrol
or diesel generator.
Screening in 3 fractions
The smart trommel screening machine
for professional applications

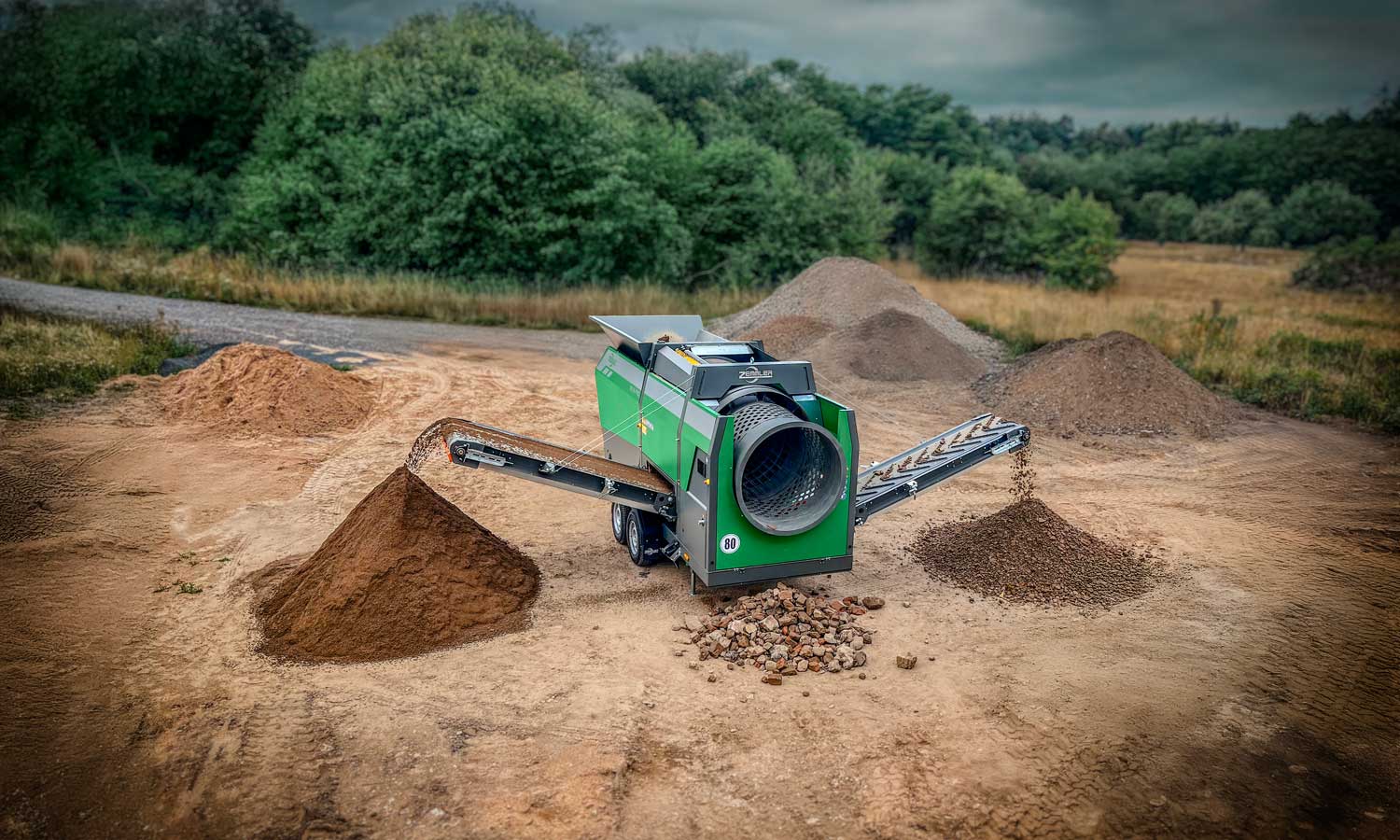

The Zemmler MULTI SCREEN® MS 16 Pro is designed for gardening and landscaping.
With a maximum weight of 3.5 t, the machine can be easily transported with SUVs and small transport vans. It delivers three fractions in one working procedure and features a purely electric, low-maintenance drive.
The follow-on model of MS 1600 is also fitted with mobile controls and an integrated telemetry module that enables real-time monitoring and remote maintenance. All conveyors and electrical elements are integrated in the plug-and-play design, making it particularly easy to operate and install.
Specialized in these
requirements
- Recycling
- Civil engineering
- Gardening and landscaping
- Municipal operations
Thanks to double drum technology
Special applications
- Horse grounds
-
Artificial turf-
Recycling
- Playgrounds
- Golf courses
3.5 t
Maximum weight
Electrical drive
optional external
power generator
Double trommel
technology
Full mobility
at 80 km/h
Interchangeable
wire screen
Tested
safety system
Technical Description
Trommel length
1.790 / 2.680 mm
Hopper
Volume 1.85 m³
Loading width 2,510 mm
Loading width 2,510 mm
Weight
max. 3.500 kg
Towing device
Tow head,
towing eye Ø 40 / 50 mm
towing eye Ø 40 / 50 mm
Trommel diameter
1.000 / 1.300 mm
Total screening area
approx. 11 m2
Drive
electric (16 A),
optional power generator
Transport measurements (LxWxH)
6.200 x 2.100 x 3.200 mm
Advantages of the MS 16 Pro
at a glance
Control
- Pure-electric, low-maintenance drive
- Modern mobile control instead of control cabinet, especially suitable for harsh environments
- Easy commissioning & installation
- Plug-and-Play-Design All belts & electrical elements
- Telemetry & GPS incl. faster access for dealer & manufacturer service, real-time monitoring & remote maintenance
- New operating concept intuitive user guidance with clear display of all relevant information at a glance
- Predefined programs
- Storage of programs for repeatable processes
- New touch display changed position: to the rear and higher
- Modern, dark design („Dark Theme“) for better readability
- Decentralized frequency inverter for improved cooling of the drives (avoidance of overheating problems)
- Load cut-off Belt feeder Overload cut-off
Constructive
- Modern Design
-
Lighter than the MS 1600: Max. Weight of 3.5 t incl. attachment ring & unit,
easy transportation with SUVs, vans - Improved design of the belts
- Support feet integrated in the machine
- Safer: Intervention protection, shutdown, position of the display (rear)
- Easier to maintain
- Longer service life / corrosion-resistant no perforated plates / sheet metal doublings, no (internally) unpainted hollow profiles
- Variable spare parts Drum motors, chassis etc. are available with a multi-supplier strategy – less dependency in the event of supply bottlenecks
- New drive with belt smoother running and maintenance-free up to 10,000 h (no lubrication of the chain, no changing of chain or sprocket)
- Integrated protection of the light bar (protective cover) Light bar does not necessarily have to be dismantled
- Enlarged hopper & low hopper for improved loading
Additional equipment
LED spotlights
Monitoring for all conveyors
Diesel generator
with extract
Remote control
Inner wire screens
LED ambient lighting
for machine status
Extension for 3rd fraction
Weather / dust protection
Profile belt
Chute for 3rd fraction
Outer wire screens
Bisection of the inner trommel
Closing plate
Processable
materials
Sand
Topsoil
Wood chips
Substitute fuels
Limestone
Waste
Grit / chippings
Wood waste
Building rubble
Compost
Thanks to innovative
double trommel
technology
With our MULTI SCREEN® screening systems, various materials can be easily screened and recycled thanks to innovative double drum technology. Interchangeable wire screen linings enable optimum adaptation to individual requirements.
